Description
How do I know if hub motor fits for my bike?

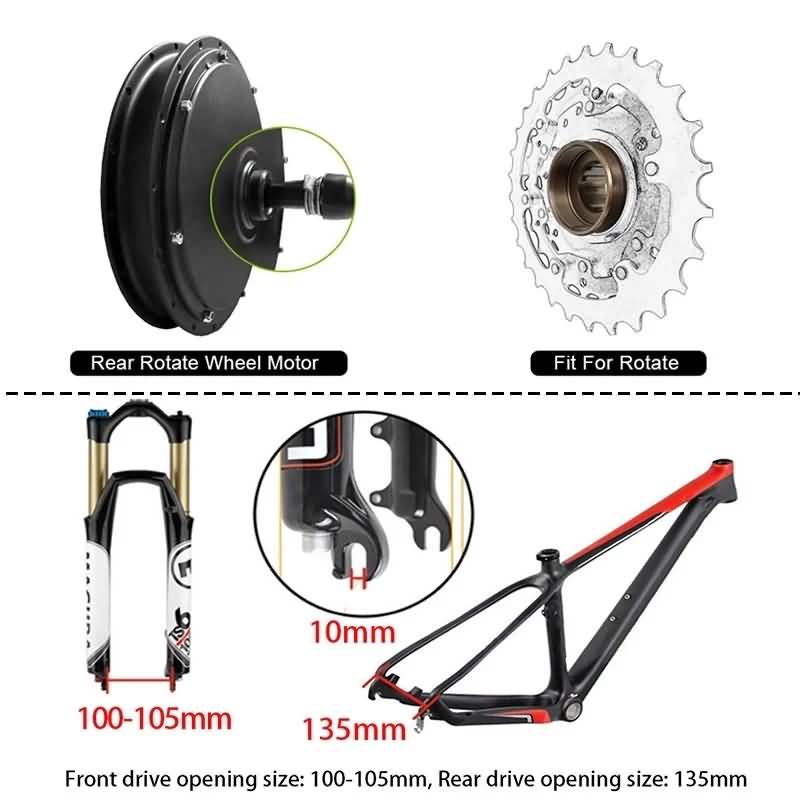

This hub motor fits for the bike with front drop out size “100-105mm”, and rear drop out size “135mm” fits for max 6/7 speed rotary flywheel.
Is my brake a hydraulic brake. Should I choose the brake lever or the sensor line?
If you have a hydraulic brake, you can choose the brake sensor cable, which is easier to install.

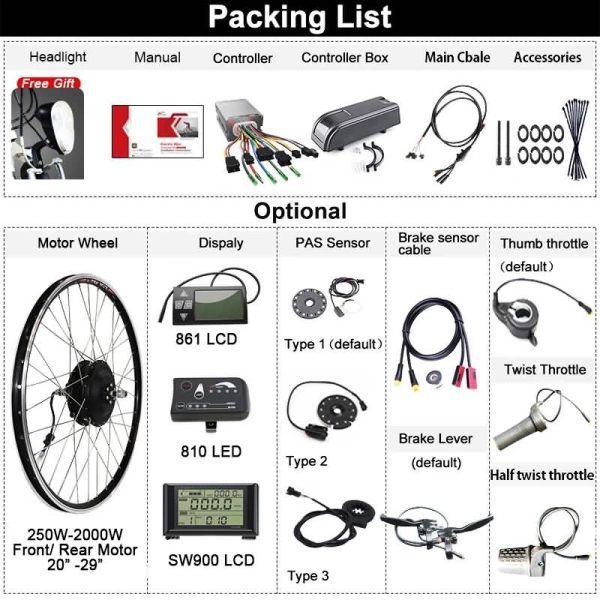

Packing List:
1 PCS * Front/Rear Hub Motor Wheel(Note if the picture on the options includes spokes and rims)
1 PCS * Motor Extension Cable
1 PCS * DC Controller
1 PCS * Controller Box or Bag
1 PCS * Display( 36V 250W/350W/500W use 810LED/861LCD, 48V 500W/1500W/2000W use SW900LCD, 48V 1000W use W108LCD)
1 Pair * Brake Levers or Brake Sensors (Default brake lever in European warehouse）
1 PCS * Thumb/ Half twist/Full twist Throttle (Default thumb throttle in European warehouse）
1 PCS * Upgraded 12 Magents Pedal Assistant Sensor
Gift:

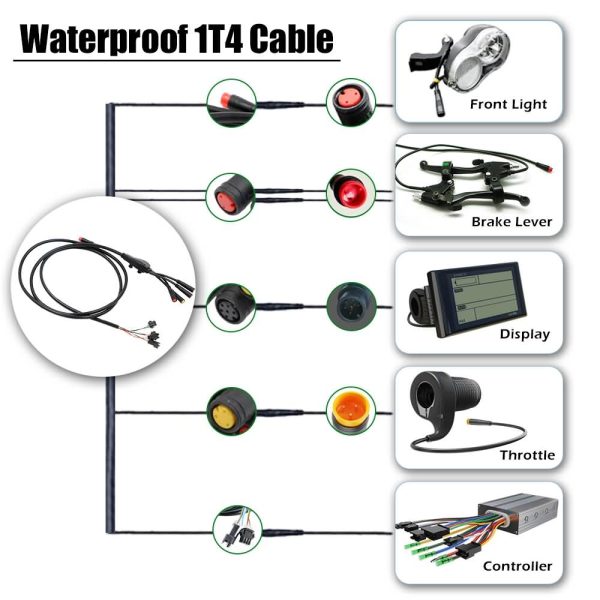

1 PCS * Waterproof 1T4 Cable
1 PCS * Headlight
Motor Specification:
1. Full Speed: 36V/48V 250/350/500W about 25-40km/hour,
48V 1000W about 45-55km/h,
48V 1500W about 50-60km/h,
48V 2000W about 55-65km/h
(different wheel size, road&weather condition and rider’s weight will have different speed)

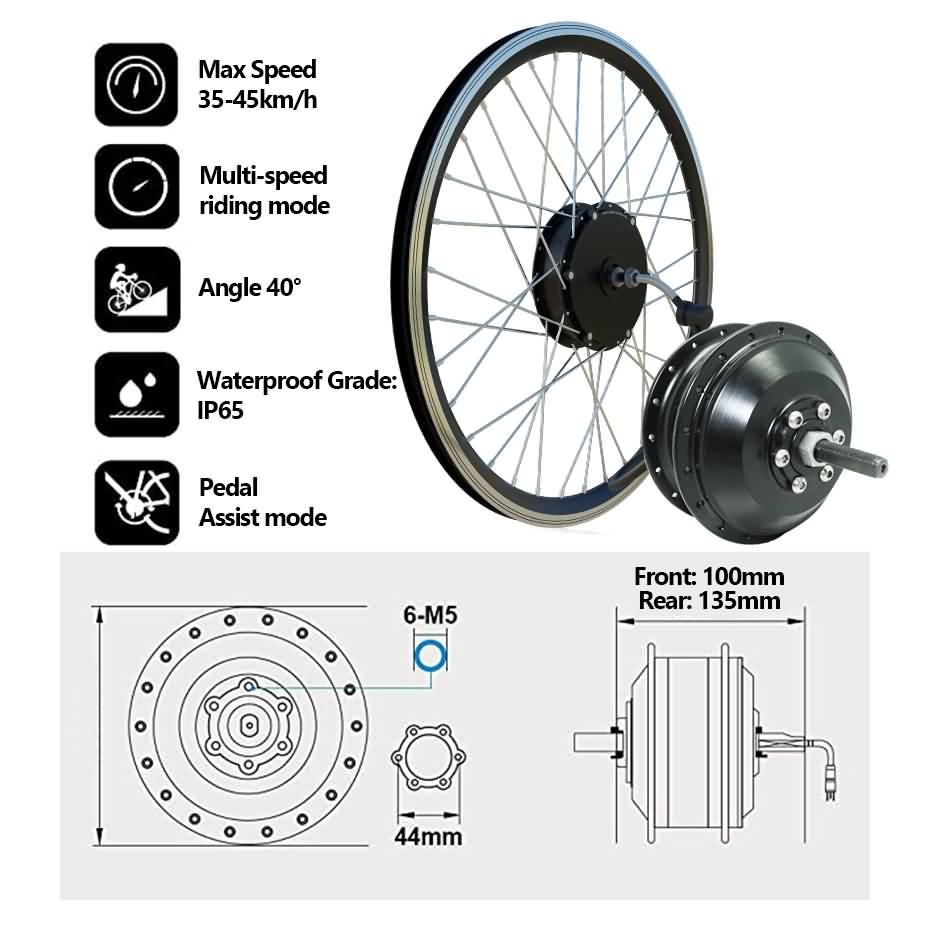

2. Hub Motor:Brushless gear Hub Motor for 36V/48V 250/350/500W
Brushless Non-gear Hub Motor for 48V 1000W/1500W/2000W
3. Rim: Double-wall Aluminium Alloy Rim
4. Wheel Bottom bracket: Front 100-105mm, Rear 135mm
5. Torque: 30/33/45 for 250W 350W 500W
55-59NM for 1000W
63-65NM for 1500W
68-71NM for 2000W
6. RPM:320/320/350 for 250W/350W/500W
470 for 48V 1000W
487 for 48V 1500W
540 for 48V 2000W
7. The motor is suitable for thread freewheel, not suitable for cassette. If you need a motor suitable for cassette, please contact us

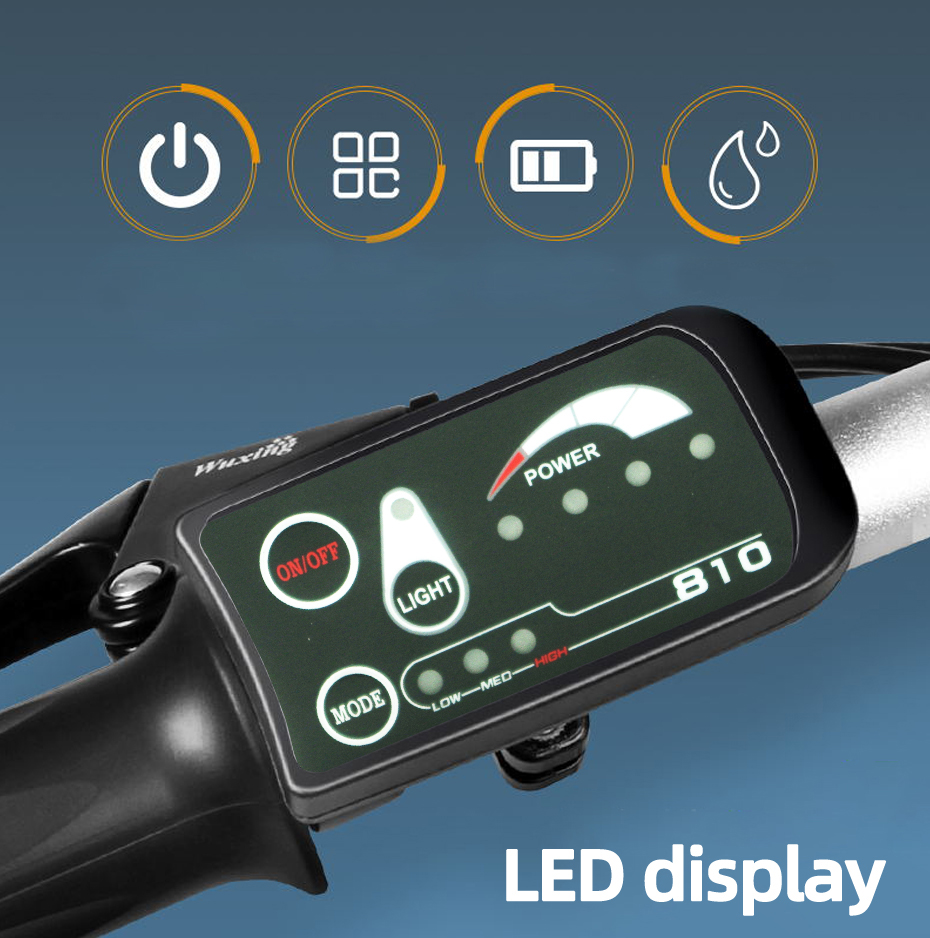

Display:
Mileage, Accumulative mileage, Cruise constant speed, Braking
, indicator, Headlight display
setting — Highest speed setting — Automatic dormancy time setting Backlight brightness setting — startup mode, drive mode is set — power
sensitivity setting — dynamical disk type voltage grade setting — controller set current limiting values
1) UART protocol: Equipped with independent press buttons
2) Speed：Real-time SPEED，MAX SPEED， Average SPEED
3) kmh/mile：Kmh/MPH according to habit
4) Battery level：Indicates the battery level in real time
5) Head light control：Press button to power on/off
6) Back light adjustment：3-level adjustment
7) Assist level：From 0 to 5, press button to change assist level, 0-no assist, 5-default value
8) Distance：ODO/Trip/Driving duration
9) Error code：Please refer to appendix table 1 for definition
10) 6km mode：In this mode, it will display “WALK” on the screen
11)Parameter setting：Set parameters, such as: wheel size, speed limit etc
Controller Specification:

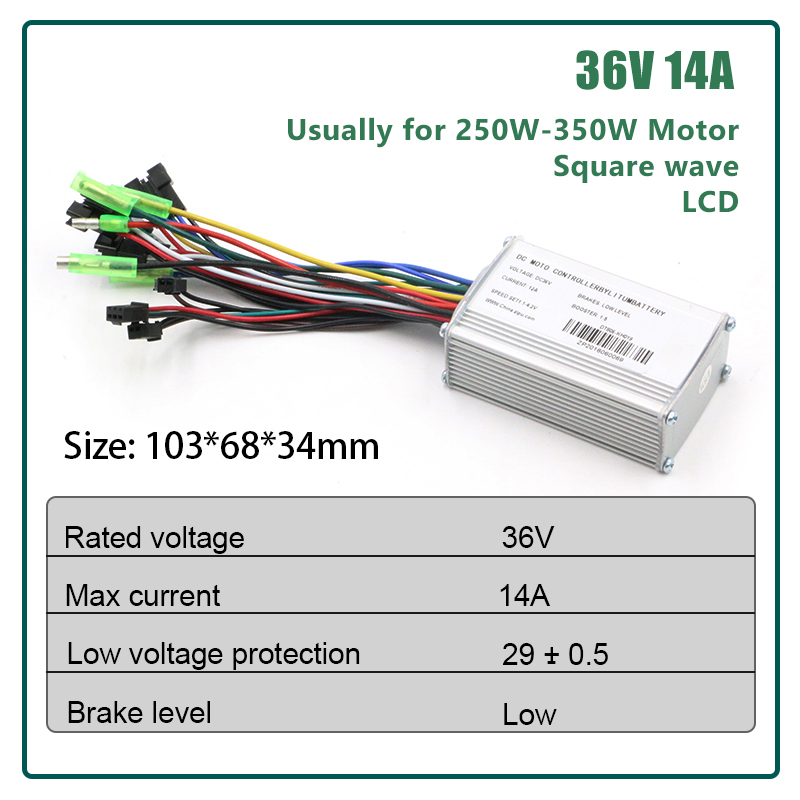

6 mosfet controller
Fit for: 36V 250W motor wheel ，810LED/861LCD Display
Rated current: 14A ,Max voltage protection: 29A±0.5V
Size: 103*68*34mm
12 mosfet controller
Fit for: 36V 350W/500W, 48V 500W motor wheel，861LCD/SW900 Display
Rated current: 20A , Max voltage protection: 39A±0.5V
Size: 103*68*34mm
18 mosfet controller
Fit for: 48V 1000W motor wheel ，W108 Display
Rated current: 28A , Max current: 41.5±1V
Size: 144*52.33*30mm

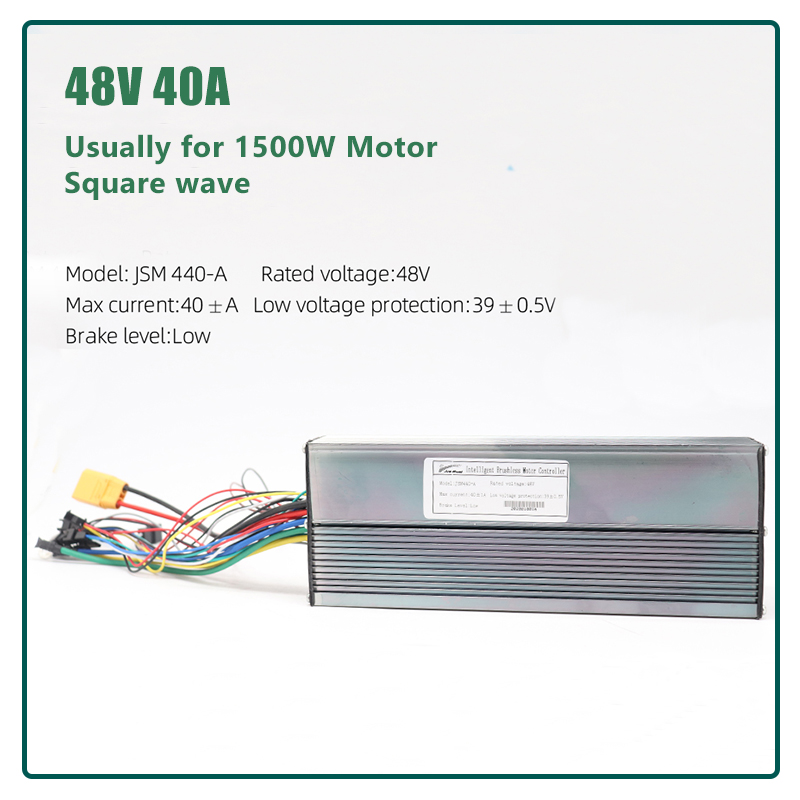

18 mosfet controller
Fit for: 48V 1500W/2000W motor wheel ，SW900 Display
Rated current: 40A , Max current: 45±1V
Upgraded 12 Magents Pedal Assistant Sensor:
Throttle:
Thumb/ Half twist/Full twist Throttle (Default thumb throttle in European warehouse）
Power cut-off Brake lever
Headlight
