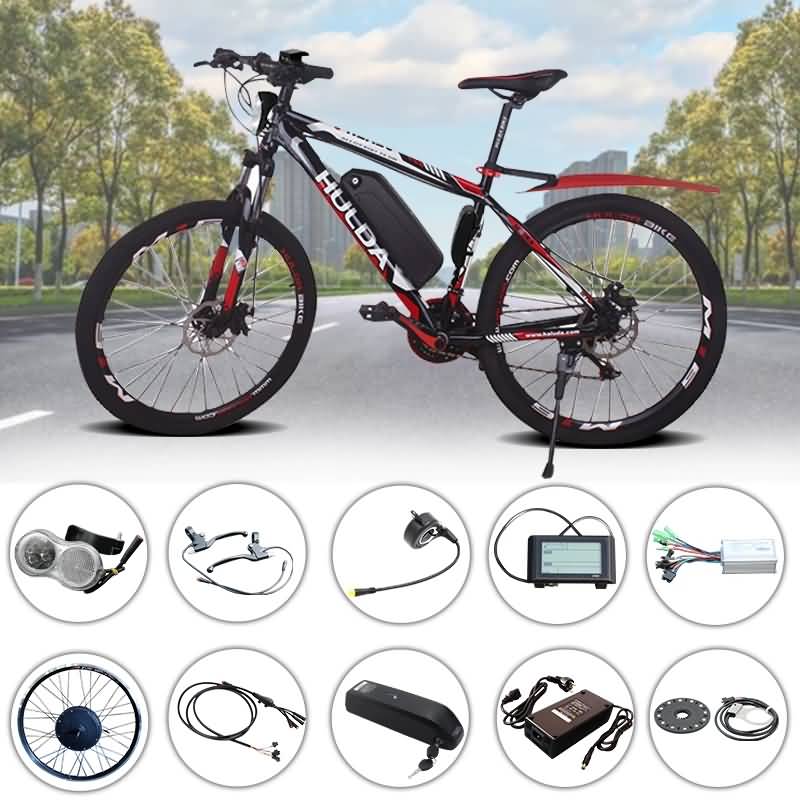

Buy Jueshuai 48V 500W Ebike Conversion Kit 13AH 16AH Lithium Battery 26 inch 700C Front Rear Hub Motor Wheel Electric Bicycle Kit

$339.82

Buy product
All Jueshuai Products Free Shipping Worldwide.
Category:

Description

Feature

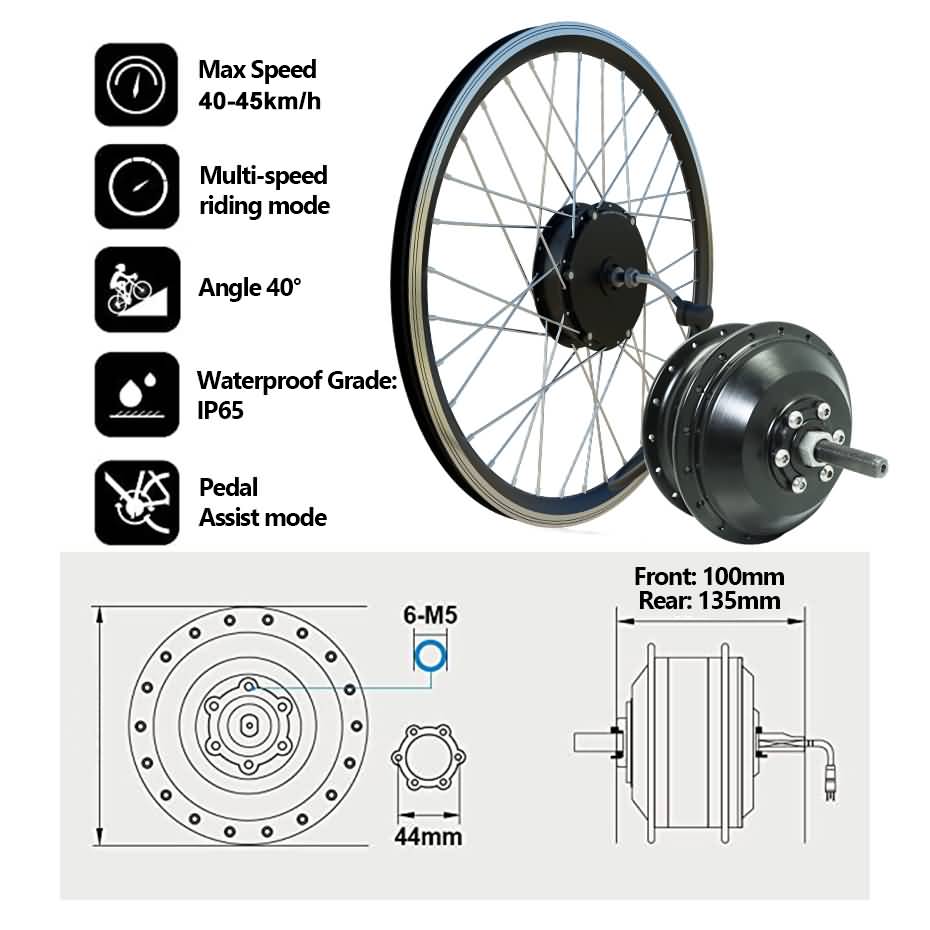

1. Stable Rear Drive System: This hub motor, which is compatible with the V/Disc brake, has a rated power of 500W, providing ideal power for vehicles.
2. Two riding modes: Pure electric bikes & pedal bicycle, switch between pure electric mode and assist mode at will.
3. Super Cost-Efficient: Speed up to 40-45 KMH, 470 RPM, efficiency ≥ 80%.
4. Universal Compatible: It’s compatiable with mountain bike,road bike, racing bike ect bikes with 135mm rear drop out, 100-105mm front drop out.

 FAQ:

1. How do I know if this rear hub drive motor fits for my bike?

Re: The rear hub motor fits for the bike with rear drop out size “135mm”, The front hub motor fits for the bike with front drop out size “100mm”.

2. How to know the rim is suitable for my tire?

Re: Check the item description below, there has the information about rim.

3. My bike is 28 inch, which one could I choose?

Re: Mostly, you could choose the 700C rim (inner diameter- 598mm, outer diameter- 652mm). But you Could send us the detailed specification of your tire for confirmation.

4. My bike is 29 inch, which one could I choose?

Re: Following 29 inch can choose the 700C rim.

5. Is my brake a hydraulic brake. Should I choose the brake lever or the sensor line?

Re: If you have a hydraulic brake, you can choose the brake sensor cable, which is easier to install.

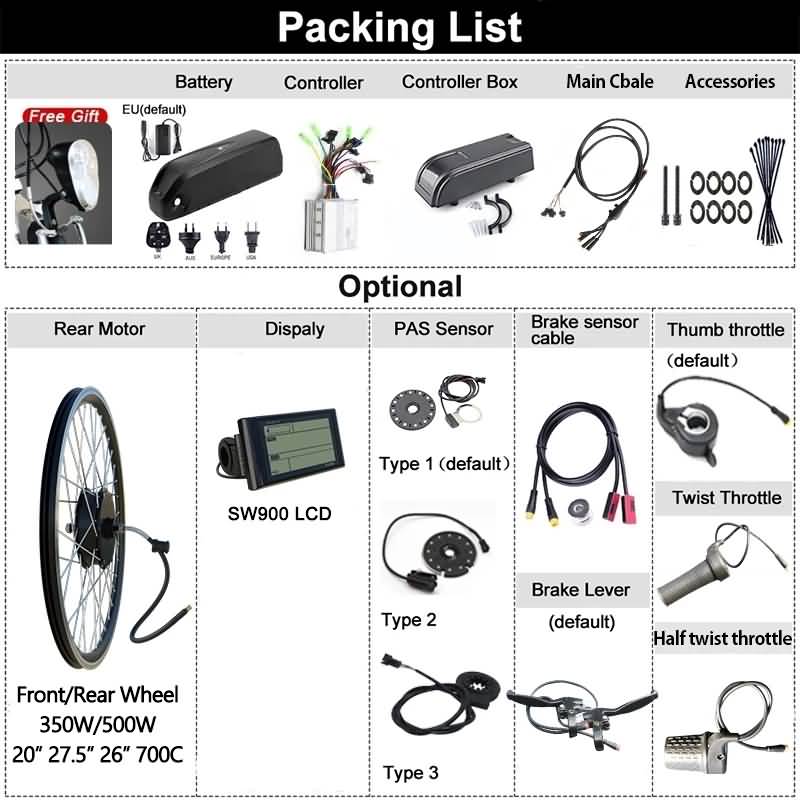

 Packing List:

1 PCS * Front/Rear Hub Motor With Rim & Spokes
1 PCS * Motor Extension Cable

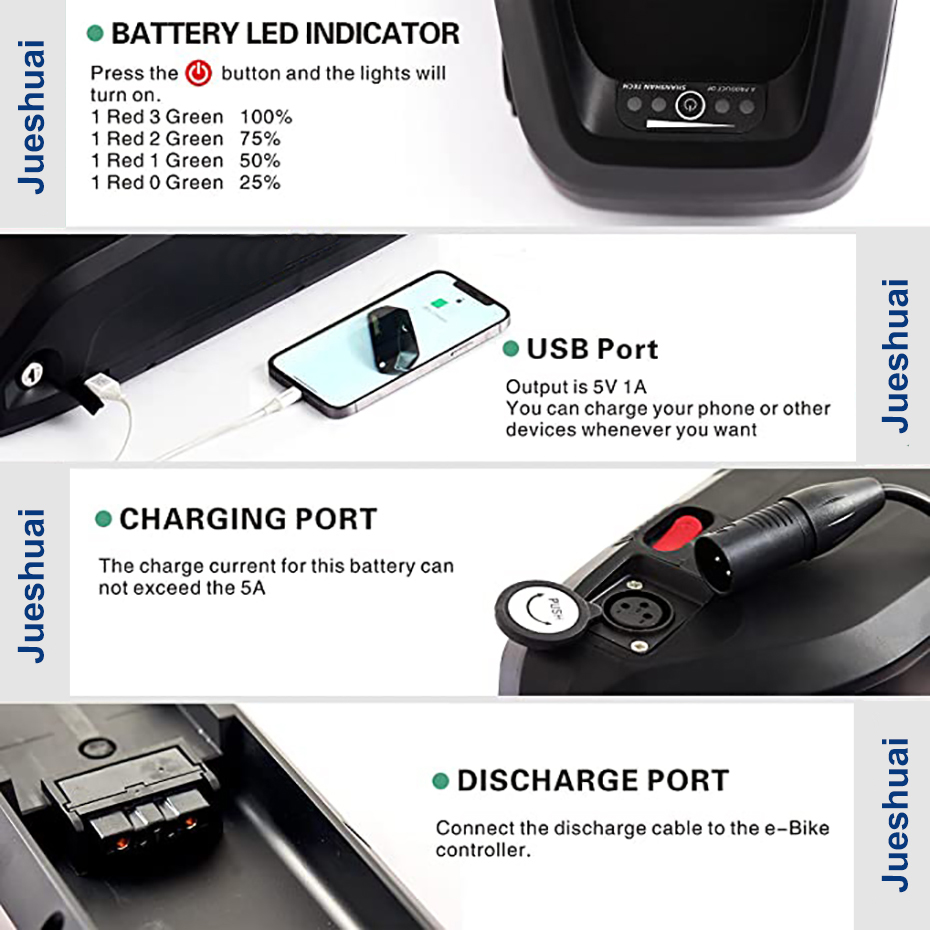

1 PCS * 48V 13Ah/16Ah Hailong battery built in 18650 cells
1 PCS * Battery charger (Europe Standerd, If you are not European, we will add conversion plug. )
1 PCS * Motor Controller
1 PCS * Controller Box
1 PCS * Display( SW900 LCD)
1 Pair * Brake Levers or Brake Sensors
1 PCS * Thumb Throttle (thumb throttle/ twist/ half twist)
1 PCS * 12 Magents PAS Sensor
1 PCS * 1T4 Cable
1 PCS * Headlight

 Kindly leave us order message in this format after you place an order:

1. Throttle: thumb/half throttle/twist
2. Brake lever/ brake sensor

* If you do not leave the message to us, we will choose brake lever and thumb throttle for you. Thanks!
* This rear motor can fit 6 speed and 7 speed freewheel.

Warm Tips:

1, Due to the particularity of the battery, some motors and batteries are not in the same warehouse, so you may receive more than one package. If there are not all products in the package you received, please do not open dispute or bad reviews first, please contact us for confirmation.
2. When using the motor kit, please make sure that the battery key is locked, otherwise the discharge port is easily burned out.

Jueshuai is a well established maker of electric bike motors and offers a front/rear hub based motor, if  you’re not a fan of the bulky profile a mid motor conversion system creates. You can buy this kit .
Advantage of Hub Motor：
1. Power saving. In-wheel electric vehicles are more power-efficient and efficient. Since the in-wheel motor is directly driven by the front/rear wheels, there is no energy loss during the transmission process, saving more power!
2. Low wear.When the hub motor is running, the current is relatively uniform, and it relies on electromagnetic induction to operate, with low noise and low wear.
3. Simple maintenance.The motor is not easy to burn out, the installation and disassembly are more convenient, and the maintenance is simple.
How to Measure a Bicycle Wheel Size
Method 1:If your tire is mounted, you can find the wheel size on the bicycle’s tire.
Method 2: Measure the distance in inches from the ground beneath the tire to the center point of the wheel. This measurement is the wheel’s radius, or half of its diameter. Multiply the length by two in order to calculate the tire’s diameter. With the exception of BMX models, most adult bicycle wheels are between 26 and 29 inches in diameter
